High Vacuum Air Injector Exhausters

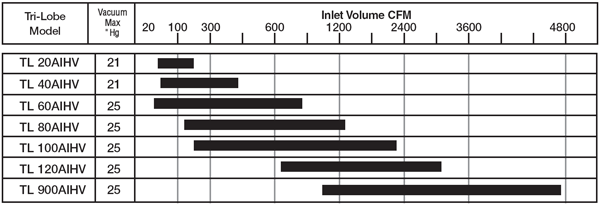

Capacities: from 55 icfm (16 in. hg) to 3305 icfm (25 in. hg) Absolute pressure ratios from 2.15 to 6.1 (at sea level)
Features:
- Either engine or electric motor drive.
- Capable of continuous service at up to 25 in. hg gauge vacuum at sea level conditions.
- Suitable for either direct coupling or v-belt drive.
- With proper valving, can also be used in pressure service up to 15 psig – (pressure performance must be obtained from other data).
- Helical gears assure proper synchronized rotor position at all times, under all loads, for long service life; heavy duty antifriction bearings are employed to extend service life, and to reduce friction to a minimum.
- Oil lubrication is employed throughout, no grease lubricated bearings are used.
- ANSI 125# in/out line connections are used, no threaded ports are used.
| Model # & max vacuum (in. HG gauge vacuum | Min. RPM | Min. ICFM | BHP at shaft | Max. RPM horiz. | Max ICFM horiz. | BHP at shaft horiz. | Max RPM vert. | Max ICFM vert. | BHP at shaft vert. |
|---|---|---|---|---|---|---|---|---|---|
| TL20AIH/V | |||||||||
|
16 18 21 |
2400 2400 3400 |
55 40 60 |
5 5.7 8.5 |
4000 4000 4000 |
151 136 84 |
8 9 11 |
4800 4800 4800 |
199 184 132 |
10 11.5 13 |
| TL40AIH/V | |||||||||
|
16 18 21 |
2000 2000 2200 |
95 72 50 |
7.4 8 10.5 |
4000 4000 4000 |
296 272 230 |
14.5 16 18.5 |
4800 4800 4800 |
376 352 410 |
17.5 19 22.5 |
| TL60AIH/V | |||||||||
|
16 18 21 23 25 |
1200 1200 1200 1500 2400 |
112 85 30 25 96 |
9 10 12 15.7 27.3 |
4000 4000 4000 4000 4000 |
672 645 590 500 416 |
30 34 39.5 43.3 47 |
4800 4800 4800 4800 4800 |
832 805 750 660 576 |
36 41 43 52 56.4 |
| TL80AIH/V | |||||||||
|
16 18 21 23 25 |
200 1200 1200 1600 2000 |
265 225 137 170 165 |
18 21 24 34 46 |
3200 3200 3200 3200 3200 |
1085 1045 957 826 657 |
49 55 63 70 75 |
3800 3800 3800 3800 3800 |
1330 1291 1213 1072 903 |
58 65.4 76.3 83.5 91 |
| TL100AIH/V | |||||||||
|
16 18 21 23 25 |
1000 1000 1000 2000 2500 |
400 330 190 750 875 |
27.5 31 36 78 105 |
2500 2500 2500 2500 2500 |
1540 1470 1330 1130 875 |
69 77.5 89 98 106 |
3000 3000 3000 3000 3000 |
2220 1850 1710 1510 1255 |
82.6 93 108.4 118.7 129 |
| TL120AIH/V | |||||||||
|
16 18 21 23 25 |
1000 1000 1000 1400 1400 |
970 870 650 995 575 |
54 60.7 70.8 106 115.5 |
2000 2000 2000 2000 2000 |
2440 2340 2120 1877 1457 |
104 117 137 149.7 162.7 |
2400 2400 2400 2400 2400 |
3028 2928 2708 2465 2045 |
129 146 170 186 202 |
| TL900AIH/V | |||||||||
|
16 18 21 23 25 |
800 800 800 1000 1300 |
1700 1520 1150 1360 1700 |
92 104 121 150 230 |
1500 1500 1500 1500 1500 |
3947 3767 3397 2965 2342 |
173 195 227 249 270 |
1800 1800 1800 1800 1800 |
4710 4730 4360 3928 3305 |
208 233 272 298 324 |

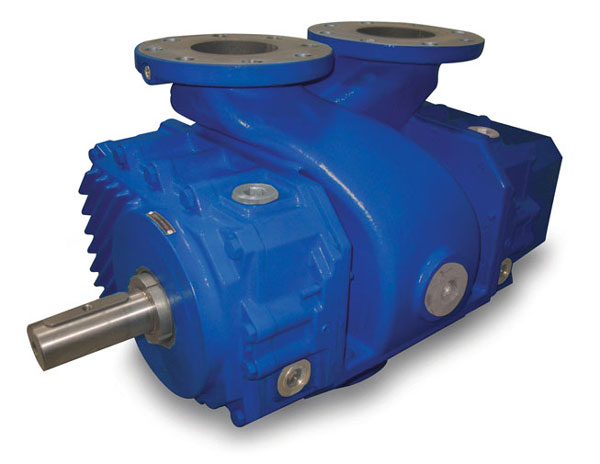

Vertical air flow

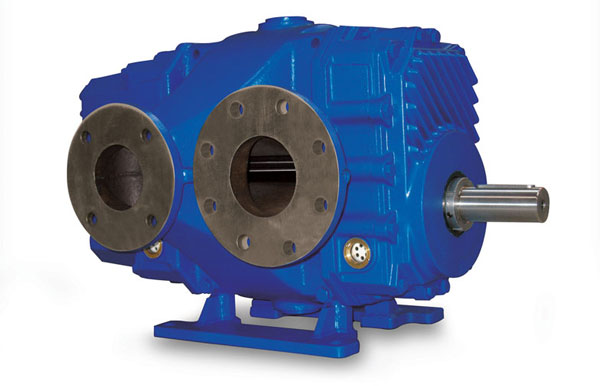

Horizontal air flow
Horizontal air flow
Horizontal air flow
