Bare Shaft Dimension Charts

Bare Shaft Blowers

Vertical Flow Dimensions

General arrangement dimensions for Blower Engineering vertical flow bare shaft blowers. All dimensional measurements are in inches.

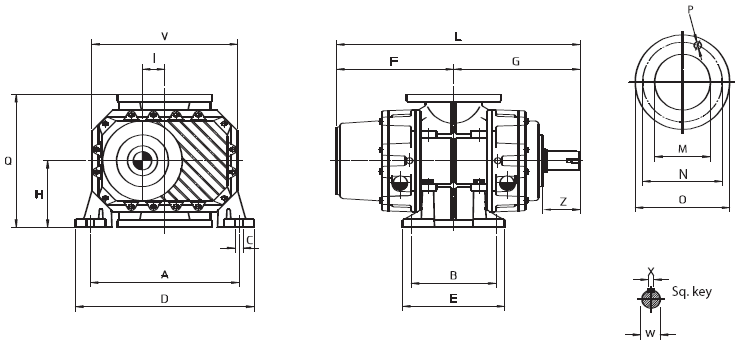

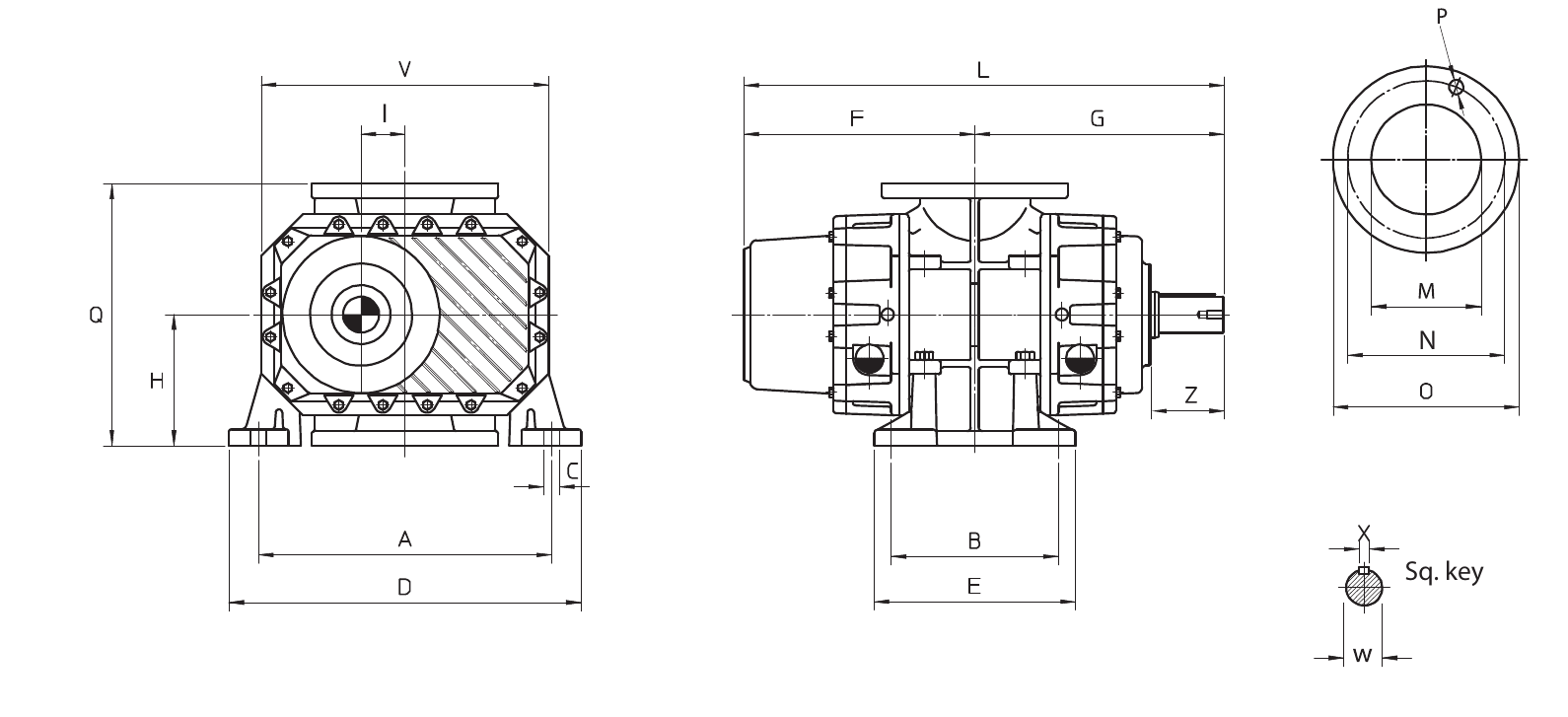

Vertical Flow — General Arrangement

Blower Engineering vertical flow bare shaft blower general arrangement dimensional drawing

Reference the lettered dimensions in the general arrangement drawing against the model-specific dimensional data below.

Model	A	B	C	D	E	F	G	H	I	L	M	N	O	P	# Holes in Flg.	Q	V	W	X	Z	Weight (lbs.)
TL10	9	4.7	0.55	12.28	5.8	8.86	9.45	5.43	1.48	18.3	2	4.75	6.5	0.7	4	10.87	10.04	1.0625	0.25	3.125	146
TL20	10.6	4.3	0.55	12.28	7.84	9.65	10.24	5.43	1.48	19.89	3	6	7.87	0.7	4	10.87	10.04	1.0625	0.25	3.125	162
TL30	11.6	8.5	0.63	14.3	9.76	10.375	11.625	6.3	1.69	22	3	6	7.87	0.7	4	12.6	11.42	1.5	0.375	3.625	224
TL40	11.6	10.4	0.63	14.3	11.81	11.5	12.76	6.3	1.69	24.26	3	6	7.87	0.7	4	12.6	11.42	1.5	0.375	3.625	250
TL41	11.6	13	0.63	14.3	16	13.25	14.75	6.3	1.69	28	4	7.5	8.66	0.7	8	12.6	11.42	1.5	0.375	3.625	284
TL50	13.4	10.8	0.7	16.85	12.2	12.125	13.25	6.3	2.09	25.375	4	7.5	8.66	0.7	8	13.78	14.17	1.75	0.375	4.625	376
TL60	13.4	13.4	0.7	16.85	15.35	13.75	14.75	6.9	2.09	28.5	4	7.5	8.66	0.7	8	13.78	14.17	1.75	0.375	4.625	412
TL61	13.4	18	0.7	16.85	19.75	15.82	17.12	6.9	2.09	32.75	6	9.5	11.25	0.7	8	13.78	14.17	1.75	0.375	4.625	500
TL70	14.6	12.4	0.94	18.15	14.64	13.62	15	8.85	2.64	28.62	6	9.5	11.22	0.9	8	17.7	17.13	2.125	0.5	4.875	608
TL80	14.6	17	0.94	18.15	18.7	15.71	17.09	8.85	2.64	32.8	6	9.5	11.22	0.9	8	17.7	17.13	2.125	0.5	4.875	694
TL81	14.6	22	0.94	18.15	24.17	18.46	19.84	8.85	2.64	38.3	6	9.5	11.22	0.9	8	17.7	17.13	2.125	0.5	4.875	808
TL90	16.9	15.25	0.94	22.8	17.64	16.5	19.75	9.84	3.35	36.25	6	9.5	11.22	0.9	8	19.69	21.42	2.375	0.625	7.0	954
TL100	16.9	19.7	0.94	22.8	22.01	18.5	22.0	9.84	3.35	40.5	8	11.75	13.5	0.9	8	19.69	21.42	2.375	0.625	7.0	1058
TL101	16.9	25.6	0.94	22.8	28.94	22.0	25.5	9.84	3.35	47.5	8	11.75	13.5	0.9	8	19.69	21.42	2.375	0.625	7.0	1258
TL110	21.5	20.25	0.94	25.67	22.61	18.25	21.5	12.4	4.17	39.75	8	11.75	13.5	0.9	8	24.8	25.75	2.5	0.625	7.125	1450
TL120	21.5	22.5	0.94	25.67	24.87	20.8	24.0	12.4	4.17	44.8	10	14.25	15.9	0.9	12	24.8	25.75	2.5	0.625	7.125	1666
TL600	34	11	0.94	37.25	15.4	21.64	27.3	15.35	5.31	48.9	10	14.25	16	1	12	30.75	32	3.5	0.875	9.125	2706
TL900	34	20	0.94	37.25	24.25	26.5	31.75	15.35	5.31	58.25	12	17	19	1	12	30.75	32	3.5	0.875	9.125	3318

Bare Shaft Blowers

Horizontal Flow Dimensions

General arrangement dimensions for Blower Engineering horizontal flow bare shaft blowers. All dimensional measurements are in inches.

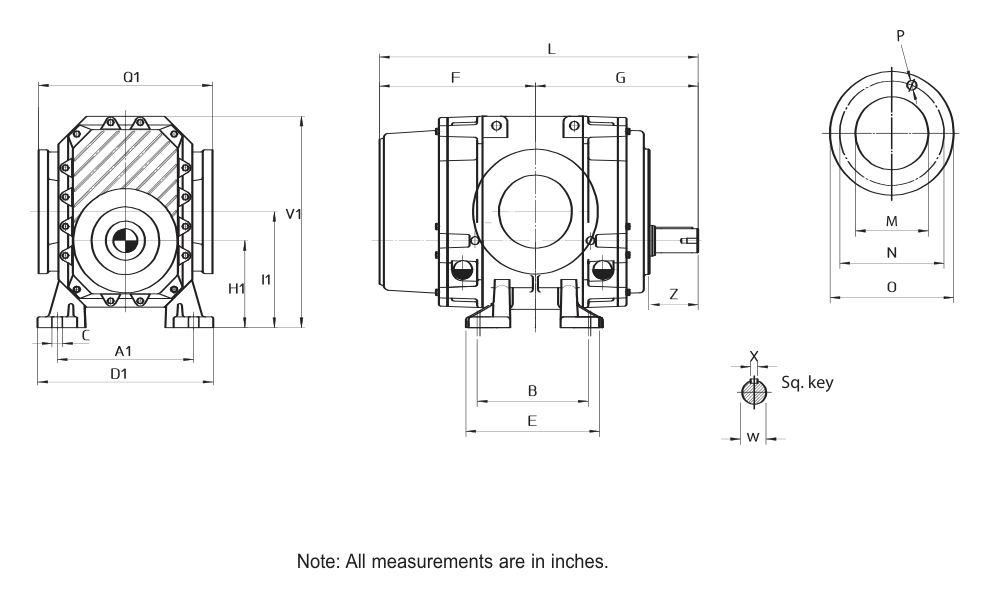

Horizontal Flow — General Arrangement

Blower Engineering horizontal flow bare shaft blower general arrangement dimensional drawing

Reference the lettered dimensions in the general arrangement drawing against the model-specific dimensional data below.

Model	A	B	C	D	E	F	G	H	I	L	M	N	O	P	# Holes in Flg.	Q	V	W	X	Z	Weight (lbs.)
TL10	7.09	4.65	0.55	9.45	5.79	8.86	9.45	5.43	6.9	18.31	2	4.75	6.5	0.7	4	10.87	11.5	1.0625	0.25	3.125	146
TL20	7.7	4.3	0.55	9.1	7.4	9.65	10.24	6.7	8	19.88	3	6	7.87	0.7	4	10.87	13.22	1.0625	0.25	3.125	162
TL30	8.5	8.5	0.63	9.88	9.76	10.375	11.625	5.2	6.89	22	3	6	7.87	0.7	4	12.6	12.75	1.5	0.375	3.625	224
TL40	8.5	10.4	0.63	9.88	11.89	11.5	12.76	5.2	6.89	24.26	3	6	7.87	0.7	4	12.6	12.75	1.5	0.375	3.625	250
TL41	8.07	13	0.63	11.06	14.56	13.25	14.75	6.3	8	28	4	7.5	8.66	0.7	8	12.6	13.72	1.5	0.375	3.625	284
TL50	11.14	10.8	0.7	13.3	12.45	12.125	13.25	6.3	8.42	25.375	4	7.5	8.66	0.7	8	13.78	15.7	1.75	0.375	4.625	376
TL60	11.14	13.4	0.7	13.3	15.35	13.75	14.75	6.3	8.42	28.5	4	7.5	8.66	0.7	8	13.78	15.7	1.75	0.375	4.625	412
TL61	9.5	15.54	0.7	12.34	17.32	15.625	17.0	6.96	9.13	32.625	6	8.5	10	0.7	8	13.78	16.42	1.75	0.375	4.625	498
TL70	12.8	12.4	0.94	15.35	14.62	13.62	15	7.1	9.75	28.62	6	8.5	10	0.9	8	17.71	18.42	2.125	0.5	4.875	608
TL80	12.8	17	0.94	15.35	18.8	15.71	17.09	7.1	9.75	32.8	6	9.5	11.22	0.9	8	17.71	18.42	2.125	0.5	4.875	694
TL81	12.8	22	0.94	15.35	24.3	18.46	19.84	7.1	9.75	38.3	6	9.5	11.22	0.9	8	17.71	18.42	2.125	0.5	4.875	808
TL90	15.5	15.25	0.94	19.2	17.9	16.5	19.75	7.95	11.3	36.25	6	9.5	11.22	0.9	8	19.69	22.01	2.375	0.625	7.0	954
TL100	15.5	19.7	0.94	19.2	23.1	18.5	22.0	7.95	11.3	40.5	8	11.75	13.5	0.9	8	19.69	22.01	2.375	0.625	7.0	1058
TL101	15.5	25.6	0.94	19.2	27.75	22.0	25.5	7.95	11.3	47.5	8	11.75	13.5	0.9	8	19.69	22.01	2.375	0.625	7.0	1258
TL110	16.14	20.25	0.94	19.7	22.8	18.25	21.5	9.96	14.13	39.75	8	11.75	13.5	0.9	8	24.8	27.01	2.5	0.625	7.125	1450
TL120	16.14	22.5	0.94	19.7	26.2	20.8	24.0	9.96	14.13	44.8	10	14.25	15.9	0.9	12	24.8	27.01	2.5	0.625	7.125	1666
TL600	13.62	7.02	1.10	22.28	15.36	22.01	25.75	15.35	20.67	47.76	10	14.25	16	1	12	30.71	36.42	3.5	0.875	7.48	2706
TL900	22.3	20	0.94	26.2	24.4	26.14	30.24	21.35	26.66	56.38	12	17	19	1	12	30.71	42.61	3.5	0.875	7.6	2976
