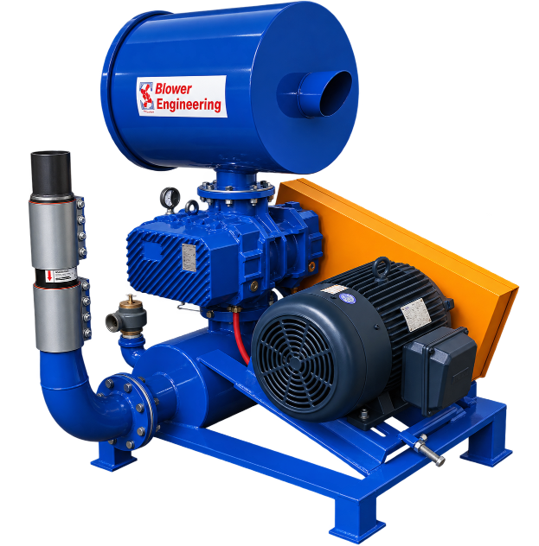

Blower Engineering packages combine our positive displacement blowers with the drive system, inlet and discharge components, instrumentation and structural base required for a complete installation. Each package can be configured around your application's airflow, pressure or vacuum requirements and operating environment.
Request a Quote →
Package configuration is selected around required airflow, pressure or vacuum, blower speed, horsepower and operating conditions.
Blower, motor, drive, silencers, valves, instrumentation and accessories are engineered as one package rather than assembled as unrelated components.
Common-base construction simplifies equipment placement, alignment, piping connections and installation.
Components are arranged to provide practical access for routine inspection, lubrication, belt service and maintenance.
Blower packages can be configured with a range of components and accessories to meet specific operating, environmental and control requirements.

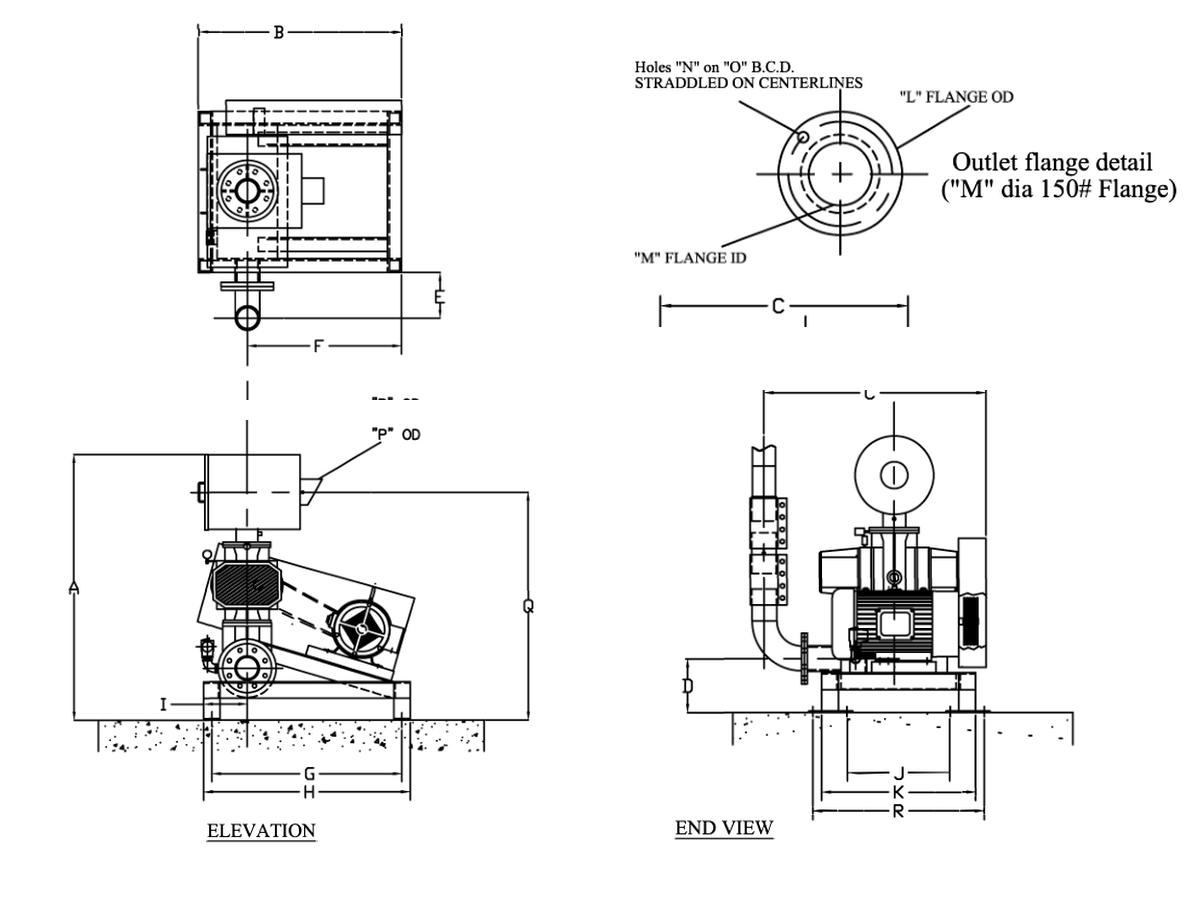

Overall dimensions for vertical outlet blower packages. All measurements are in inches.
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL10 | 48.5 | 32 | 29.5 | 9 | 6.5 | 22 | 27 | 29 | 7 | 17 | 23 | 7.5 | 3 | .75 | 6 | 3 | 38 | 25 |
| TL20 | 48 | 32 | 29.5 | 9 | 6.5 | 22 | 27 | 29 | 7 | 17 | 23 | 7.5 | 3 | .75 | 6 | 4 | 37.5 | 25 |
| TL30 | 50 | 32 | 29.5 | 9 | 6.5 | 22 | 27 | 29 | 7 | 17 | 23 | 7.5 | 3 | .75 | 6 | 4 | 39.25 | 25 |
| TL40 | 50 | 32 | 29.5 | 9 | 6.5 | 22 | 27 | 29 | 7 | 17 | 23 | 7.5 | 3 | .75 | 6 | 4 | 39.25 | 25 |
| TL41 | 60 | 40 | 36 | 9.5 | 8 | 30 | 35 | 38 | 8 | 17.75 | 27.25 | 9 | 4 | .75 | 7.5 | 6 | 47.125 | 30.75 |
| TL50 | 53 | 40 | 35.25 | 9.5 | 8 | 30 | 35 | 38 | 8 | 17.75 | 27.25 | 9 | 4 | .75 | 7.5 | 5 | 43 | 30.75 |
| TL60 | 61.5 | 40 | 35.25 | 9.5 | 8 | 30 | 35 | 38 | 8 | 17.75 | 27.25 | 9 | 4 | .75 | 7.5 | 6 | 48.625 | 30.75 |
| TL61 | 64 | 49 | 45 | 11 | 9.5 | 35 | 42 | 46 | 11 | 22.5 | 34 | 10 | 5 | .875 | 8.5 | 8 | 50.75 | 37.5 |
| TL70 | 68 | 49 | 43 | 11 | 9.5 | 35 | 42 | 46 | 11 | 22.5 | 34 | 10 | 5 | .875 | 8.5 | 8 | 54.75 | 37.5 |
| TL80 | 68 | 49 | 46 | 11 | 9.5 | 35 | 42 | 46 | 11 | 22.5 | 34 | 10 | 5 | .875 | 8.5 | 8 | 54.75 | 37.5 |
| TL81 | 68 | 49 | 47.25 | 11 | 9.5 | 35 | 42 | 46 | 11 | 22.5 | 34 | 10 | 5 | .875 | 8.5 | 8 | 54.75 | 37.5 |
| TL90 | 70 | 49 | 46 | 11 | 9.5 | 35 | 42 | 46 | 11 | 22.5 | 34 | 10 | 5 | .875 | 8.5 | 8 | 56.75 | 37.5 |
| TL100 | 79 | 60 | 53 | 12.25 | 10.5 | 43 | 51 | 56 | 13 | 27 | 40 | 11 | 6 | .875 | 9.5 | 10 | 62.75 | 43.5 |
| TL101 | 79 | 60 | 56.625 | 12.25 | 10.5 | 43 | 51 | 56 | 13 | 27 | 40 | 11 | 6 | .875 | 9.5 | 10 | 62.75 | 43.5 |
| TL110 | 84 | 60 | 52.5 | 12.25 | 10.5 | 43 | 51 | 56 | 13 | 27 | 40 | 11 | 6 | .875 | 9.5 | 10 | 67.75 | 43.5 |
| TL120 | 88.5 | 68 | 66.25 | 15 | 13.5 | 46 | 55 | 60 | 14 | 31 | 45 | 13.5 | 8 | .875 | 11.75 | 12 | 72 | 48 |
| TL600 | 95 | 68 | 67.55 | 15 | 13.5 | 46 | 55 | 60 | 14 | 31 | 45 | 13.5 | 8 | .875 | 11.75 | 12 | 72 | 48 |
| TL900 | 117 | 86 | 72 | 17 | 14.25 | 54 | 66 | 72 | 18 | 32.75 | 48.75 | 13.5 | 8 | .88 | 11.75 | 14 | 91.75 | 56.75 |
